Round Steel Bar Straightening Machines For Sale
1. Round Steel Bar Straightening Machines Videos

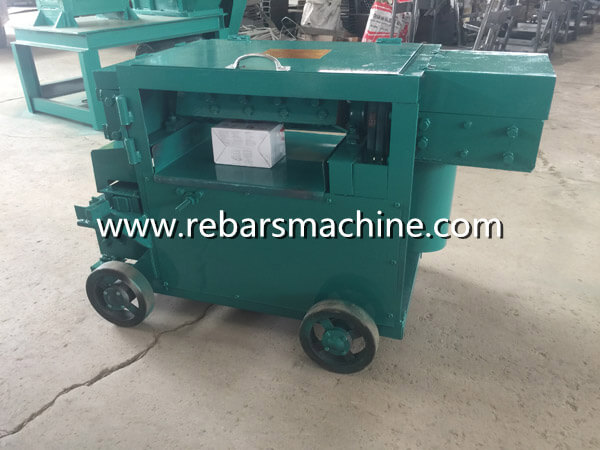

MY2-5 works for Ø2mm~Ø5mm wire, cold drawing wire; not for hard wire or spring wire;
Electric motor 3Kw
Straightening speed 20m per minute
Machine Weight 100kgs
Dimension size 67*50*85cm

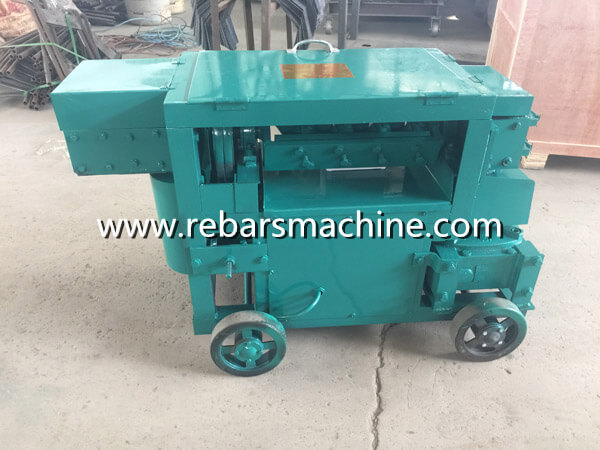

MY5-12 works for Ø5mm~Ø12mm round bar, scrap bar, used bar, bar coil and so on..
Electric motor 5.5Kw
Straightening Speed 20m per minute
Machine weight 330Kgs
Dimension size 118*65*78cm

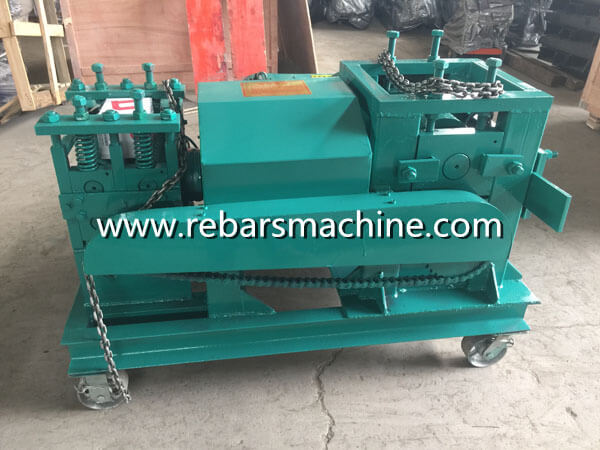

MYH6-14 works for Ø6mm~Ø14mm round bar, scrap rebar, used rebar, rebar coil and so on..
Electric motor 9.5Kw
Straightening Speed 35m per minute
Machine weight 850Kgs
Dimension size 150*125*90cm

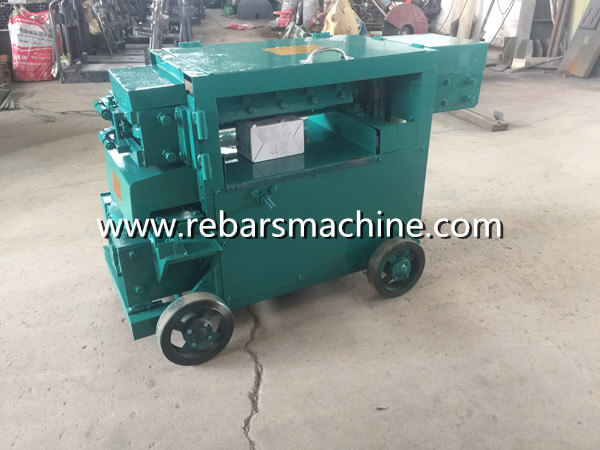

YC6-14 works for Ø6mm~Ø14mm round bar, scrap bar, used bar, and so on..
Electric motor 7.5Kw
Straightening Speed 25m per minute
Machine weight 700Kgs
Dimension size 122*82*125cm
YC16-24 works for Ø16mm~Ø25mm round bar, scrap bar, used bar, and so on..
Electric motor 15Kw
Straightening Speed 20m per minute
Machine weight 900Kgs
Dimension size 152*92*125cm
MY10-25 works for Ø10mm~Ø25mm round bar, scrap bar, used bar, and so on..
Electric motor 15Kw
Straightening Speed 20m per minute
Machine weight 900Kgs
Dimension size 150*90*135cm
2. Machine Working Priciple (Rollers? Precision?)
- Compression Rollers + Straightening Rotating Rollers
- Higher Precision
Picture 1 shows two Compression Rollers, used for pulling and transiting stuff passing, you can see there are 2 channels adapt to different diameter stuff,
Picture 2 shows one Straightening Rotating Roller, straightening passed stuff, it is adjustable to match different size stuff,
It has four Compression rollers and one Straightening Rotating Roller (Straightening Die),
Its Precision is higher, 95% straightness accuracy.

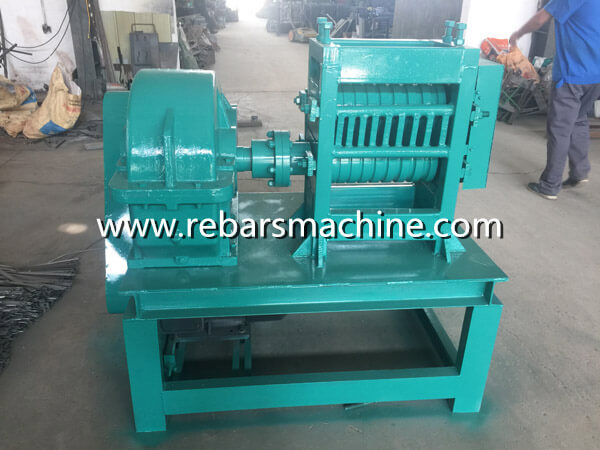

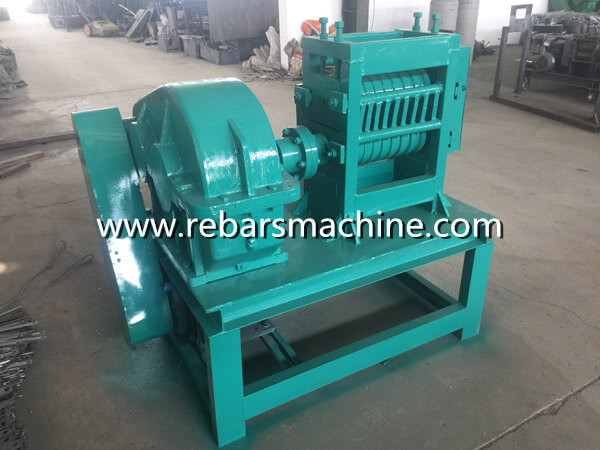

- Compression Rollers Only
- Lower Precision
The image shows two Compression Rollers, used for pulling and transiting stuff passing, you can see there are 5 channels adapt to different diameter stuff,
Its Precision is Lower than the first grouped machines,
80% straightness accuracy.
Image 1 shows two Compression Rollers, used for pulling and transiting stuff passing, you can see there are 2 channels adapt to different diameter stuff,
Image 2 shows eight Straightening Rotating Rollers, straightening passed stuff, it is adjustable to match different size stuff,
It has four Compression rollers and eight Straightening Rotating Rollers (Straightening Die),
Its Precision is higher, 95% straightness accuracy.
Picture shows two Compression Rollers, used for pulling and transiting stuff passing, you can see there are 4 channels adapt to different diameter stuff,
Its Precision is Lower than the first grouped machines,
80% straightness accuracy.
Picture 1 shows four Compression Rollers, used for pulling and transiting stuff passing, you can see there are 7 channels adapt to different diameter stuff,
Picture 2 shows five Straightening Rotating Rollers, straightening passed stuff, it is adjustable to match different size stuff,
It has eight Compression rollers and five Straightening Rotating Rollers (Straightening Die),
Its Precision is higher, 95% straightness accuracy.
Picture shows two Compression Rollers, used for pulling and transiting stuff passing, you can see there are 8 channels adapt to different diameter stuff,
Its Precision is Lower than the first grouped machines,
80% straightness accuracy.
3. What’s your raw stuff material
The bar straightening machines for round bar, round steel, steel bar, scrap bar, used round bar, black bar, TMT bar, deformed bar, rebar coil….
Don’t know these stuff exactly? please go Wikipedia
Those stuffs are not available: flat bar, angle bar, tubes….
4. Some Related Issues
Some issues may you concern,
- These machines are semi automatic
- Prices as low as US $450~
- We are a manufacturer company, in China
- All our machines are new fresh, not a second hand
- These machines don’t have cutting device after straightening
- They are not a decoiling and cutting machineDecoiling and cutting machine link
5. Operation Manual
How to use the machines above, please check the operation manual in lists
