How to use a wire straightening machine MY2-5 (manuals of MY2-5 wire straightening machine)

  • Before using the MY2-5 wire straightening machine, please read this operating manual carefully

Specification of the wire straightener machine

  • Machine ModelMY2-5
    Straight CapacityØ2mm-Ø5mm
    Straightening Motor3Kw
    Speed20m per minute
    GW/NW120Kg/100Kg
    Package Dimension67*50* 85cm

Fill machine oil

  • First of all, open oil hole cover on gears box, then fill 0.75kg machine oil through oil hole, and contingent survey oil level, and paint lubricating oil to gears and chain

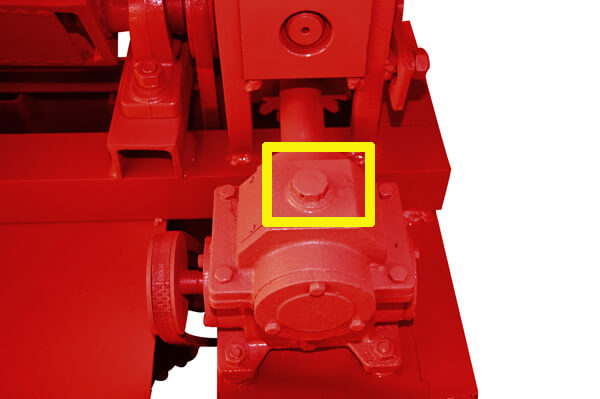

reduction gears of MY2-5 wire straightener machine

Commissioning

  • Connect power line 380V three phase, 3Kw, if the machine motor is customized, do it as power required
  • Since commissioning is ok, finally you can go ahead with heavy duty works

Fault handling (if it can’t straight wire in good performance)

  • Bolts those on cover, it should be just right, not too tight and not too loose

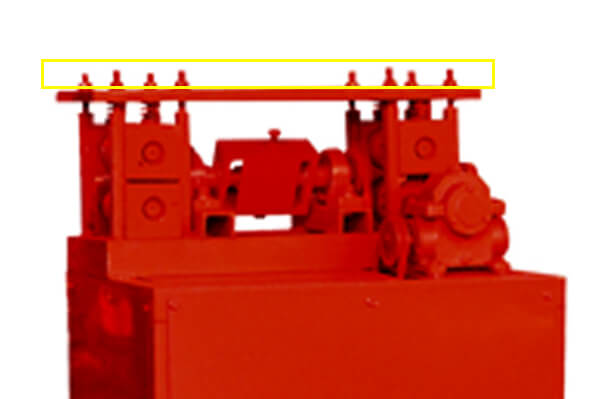

pressing bolts of wire straightening machine
  • Adjust the straightener roller, until it has a good straightening performance,
straightener rollers
  • It needs to adjust security strip to the suitable diameter channel which adapt to wire
import hole of MY2-5 wire straightener machine

Download the manual

instruction manual
