How to use an iron rod straightening machine YC16-25 (manual of YC16-25 iron rod straightening machine)

  • Before using the iron rod straightening machine, please read this operating manual carefully

Tech details specification of the rod straightening machine

  • Machine ModelYC16-25
    Straight CapacityØ16mm-Ø25mm
    Straightening Motor15Kw
    Straightening speed20m/minute
    GW/NW900Kg/850Kg
    Package Dimension152*92*125cm

Fill machine oil

  • First of all, open oil hole cover that on gears box, then fill 15kgs machine oil through oil hole, and contingent survey oil level,
reduction gears of YC6-14 steel bar straightening machine

Commissioning

  • Connect power line three phase, 8Kw, if you order a customized machine, do it as the power required,
  • Use a straight bar to commissioning, since commissioning is ok, finally you can go ahead with heavy duty works

Wheels for compression roller

  • Adjust it to a proper situation, not too tight and not too loose,
  • Too tight, it will hard to pull rod into roller, and rod will be shape changing, not round
  • Too loose, straight performance will be not good

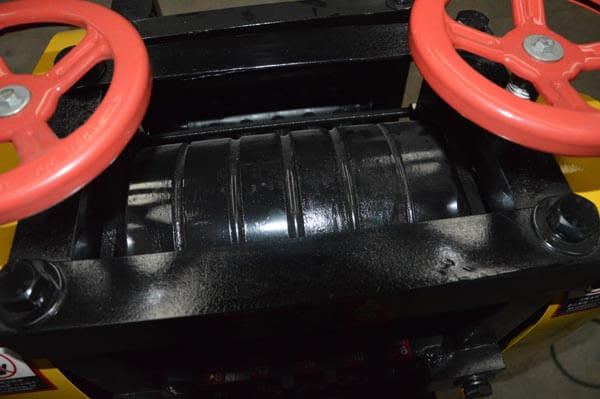

compression rollers of YC6-14 straightening machine
