How to use a scrap bar straightening machine YC6-14 (manual of YC6-14 scrap bar straightening machine)

  • Before using the scrap bar straightening machine, please read this operating manual carefully

Tech details specification of the scrap bar straightening machine

  • Machine ModelYC6-14
    Straight CapacityØ6mm-Ø14mm
    Straightening Motor5.5Kw
    Cutting Motor2.2Kw
    GW/NW800Kg/750Kg
    Package Dimension122*82*125cm

Fill machine oil

  • First of all, open oil hole cover that on gears box, then fill 8kgs machine oil through oil hole, and contingent survey oil level,

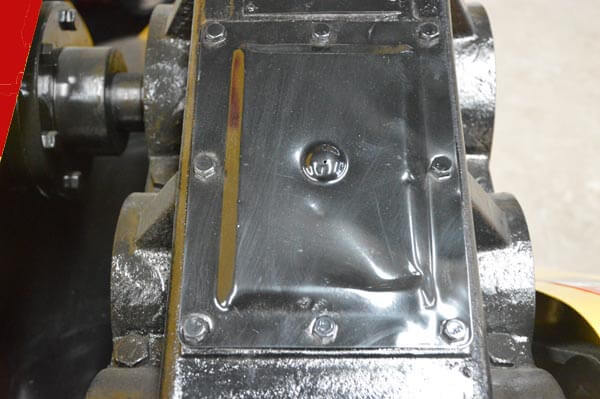

reduction gears of YC6-14 steel bar straightening machine

Commissioning

  • Connect power line three phase, 8Kw, if you order a customized machine, do it as the power required,
  • Use a straight bar to commissioning, since commissioning is ok, finally you can go ahead with heavy duty works

Cutting facility

  • You can cut bent bar head or twist head which is hard pass through machine

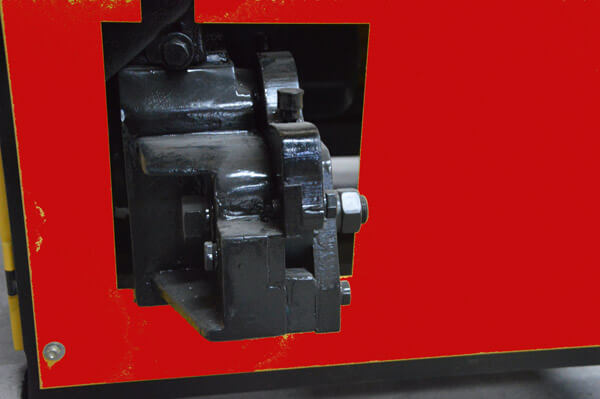

cutting facility of YC6-14 straightening machine

Two motors

  • The big motor is used for driving straightening device, and the small motor is used for driving cutting facility,
  • If you don’t use cutting facility, not need to connect to power source

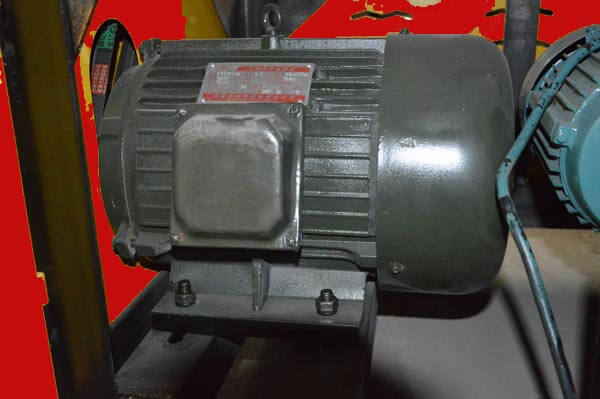

motor for straightening facility

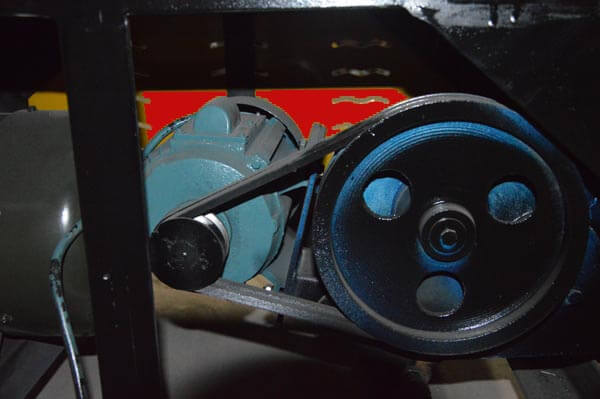

motor for cutting facility
