How to use a bar straightening machine MYH6-14 (manual of MYH6-14 bar straightening machine)

  • Before using the MYH6-14 bar straightening machine, please read this operating manual carefully

Specification of the bar straightening machine

  • Machine ModelMYH6-14
    Straight CapacityØ6mm-Ø14mm
    Straightening Motor9.5Kw(5.5Kw&4Kw)
    Straightening speed35m/minute
    GW/NW800Kg/750Kg
    Package Dimension150*125*90cm

Fill machine oil

  • First of all, open oil hole cover on gears box, then fill 8kgs machine oil through oil hole, and contingent survey oil level
  • And paint lubricating oil to gears and chain

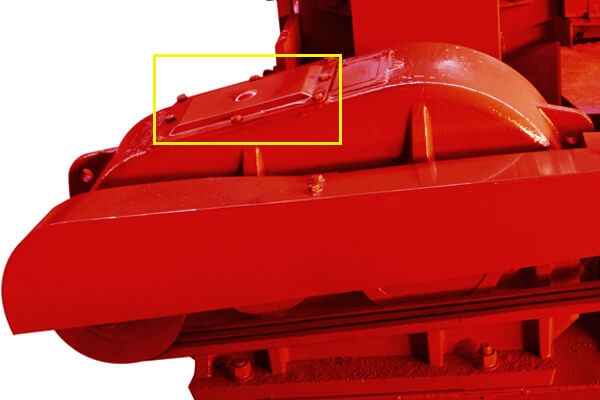

Reduction gears box and oil hole

Commissioning

  • Connect power line three phase, 9.5Kw, if the machine motor is customized, do it as power required,
  • Use a straight bar to commissioning, since commissioning is ok, finally you can go ahead with heavy duty works

How to straightening different size bar (6mm-14mm)

  • Adjust the bolts which adapt to straightening rollers, make sure straightening rollers are flat and tidy, and touch rebar tightly,

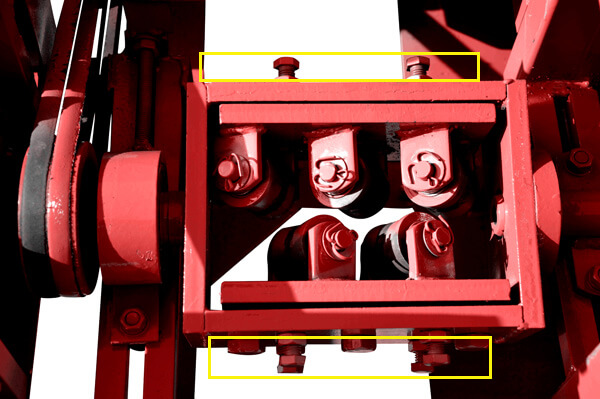

straightening rollers &frame of MYH6-14 bar straightening machine

Matters need attention (fault handling)

  • Please attention the 4 bolts above import rollers and 4 bolts above export rollers, operator need to adjust them as proper situation, not too tight and not too loose,
  • If too tight, rollers will squeeze bar shape changing, not round.
  • And not too loose, if too loose, bar will shake and switch, even hurt people
  • What is a proper situation, judgement standard, bar pass through smooth going, straight and no shape changing
import traction rollers and fixing bolts

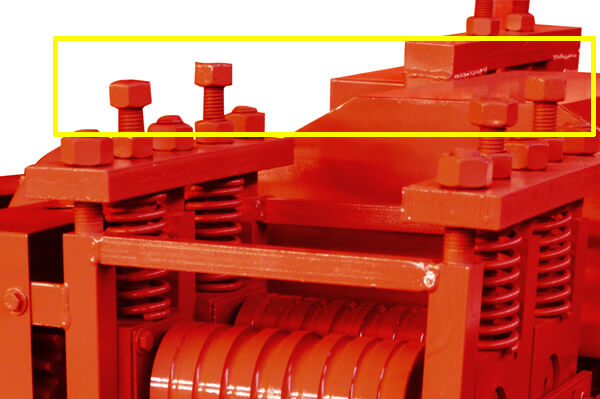

bolts of MYH6-14 bar straightening machine
