Project Description

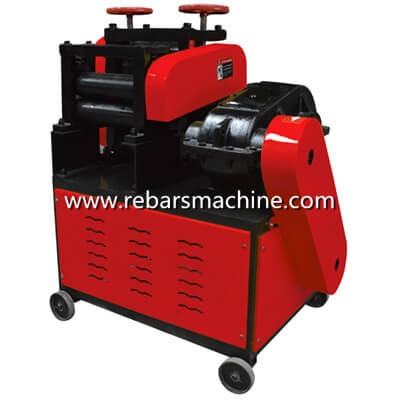

  • YC16-25 steel rod straightening machine

As the name implies, the steel rod straightening is used for straightening bent steel rod,scrap steel rod,twisted steel rod and others, as a result,straightening accuracy could be 95%+

  • Video of the steel rod straightening machine

  • Specific of the steel rod straightening machine

Machine ModelYC16-25
Straight CapacityØ16mm-Ø25mm
Straightening Motor15Kw
Straightening speed20m/minute
GW/NW900Kg/850Kg
Package Dimension152*92*125cm
  • How to use the steel rod straightening machine, let’s introduce its composition as follows,

scrap rebar shapes
  • Any shapes of bent steel rod or scrap steel rod

The steel rod straightening machinecan straight shapes in the above picture, either it can straight almost all shapes of bent bar, scrap bar

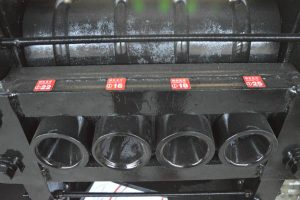

input hole of steel rod straightening machine
  • 16mm-25mm range

The steel rod straightening machine has 4 input holes, which are passed through different diameter steel bar 16mm-25mm, it has mark stickers showing holes’ capacity, 16mm-25mm range, and it’s very easy for a not skilled operator.

Compression rollers of steel rod straightening machine
  • Compression rollers

The steel rod straightening machine has 2 wheels that controlling compression rollers, adjust the 2 wheels to adapt a good performance of straightening,

reduction gears of YC6-14 steel bar straightening machine
  • Reduction gears

Here it is an oil hole cover, it needs inject 15kgs machine oil, and the reduction gears box supply powerful traction source

Traction roller of YC6-14 straightening machine
  • Traction roller

This facility used for traction straighten bar out smoothly, in addition saving human source

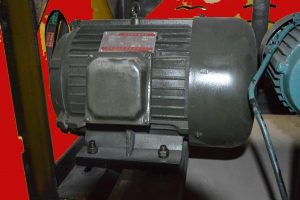

motor for straightening facility
  • Electric motor for straightening unit

This is a 15Kw electric motor, connect three phase electric power into junction box, and it’s safety,

  • FAQ

1- What electricity for this steel rod straightening machine?

Conventional supplying,380V, three phase,15Kw; for sure, we can also supply 220V, 400V,440V,600V and any others

2- What diameter bars this machine can straight

16mm-25mm

3- Is there agent of steel rod straightening machine in our country?

We have many customers worldwide, and we do have agents in some countries, for more details,please contact with us

4- I’m an end user, I need just 1 piece of machine

We do supply any quanties to customers, but as an export shipment, cost will be higer much for small shipment

5- What’s your payment?

T/T in company account, or Western Union for personal,

  • Machine order delivery

  • How to use this machine

If you want to know exactly how to use this machine,or if you already got such a machine, please move your step to instruction manual page
