Project Description

  • YC6-14 steel bar straightening machine

As the name implies, it’s a machine used for straightening bent rebar,scrap rebar,twisted rebar and others,straightening accuracy could be 85%+

  • Video of the steel bar straightening machine

  • Specific of the steel bar straightening machine

Machine ModelYC6-14
Straight CapacityØ6mm-Ø14mm
Straightening Motor5.5Kw
Cutting Motor2.2Kw
GW/NW800Kg/750Kg
Package Dimension122*82*125cm
  • How to use the steel bar straightening machine, let’s introduce the machine composition as follows,

scrap rebar shapes
  • Any shapes of bent bar

Not only such shapes in the above picture, it can also straight any shapes of bent bar, scrap bar, most shapes of scrap rebar

input holes of YC6-14 straightening machine
  • 6mm-14mm range

It has 5 input holes which are passed through different diameter steel bar 6mm-14mm, it has mark stickers showing holes’ capacity, 6mm-14mm range, and it’s very easy for a not skilled operator.

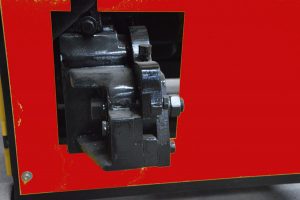

cutting facility of YC6-14 straightening machine
  • Cutting facility

It has a cutting facility which can cut a twisted bar head, if it’s hard to put a twisted bar into the hole, use the cutting facility to cut twisted bar head off,

compression rollers of YC6-14 straightening machine
  • Compression rollers

There are 2 wheels for controlling the compression rollers, adjust the 2 wheels to adapt a good performance of straightening,

reduction gears of YC6-14 steel bar straightening machine
  • Reduction gears

Here it is the oil hole cover, it needs inject 5kgs machine oil before using the machine, the reduction gears box supply powerful traction source

Traction roller of YC6-14 straightening machine
  • Traction roller

This facility used for traction straighten bar out smoothly, save human source

motor for straightening facility
  • Electric motor for straightening unit

This is a 5.5Kw electric motor, connect three phase electric power into junction box, and make sure it’s safety,

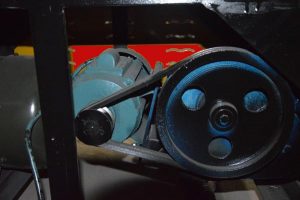

motor for cutting facility
  • Electric motor for cutting facility

This is a 2.2Kw electric motor, there is a three phase power line, connect it to power source, and make sure it’s safety.

  • FAQ

1- What electricity for this machine?

Conventional supplying,380V, three phase,7.5Kw; for sure, we can also supply 220V, 400V,440V,600V and any others

2- What diameter bars this machine can straight

6mm-14mm

3- Is there agent in our country?

We have many customers worldwide, and we do have agents in some countries, for more details,please contact with us

4- I’m an end user, I need just 1 piece of machine

We do supply any quanties to customers, but as an export shipment, cost will be higer much for small shipment

5- What’s your payment?

T/T in company account, or Western Union for personal,

  • Machine order delivery

  • How to use this machine

If you want to know exactly how to use this machine,or if you already got such a machine, please move your step to instruction manual page
