Project Description

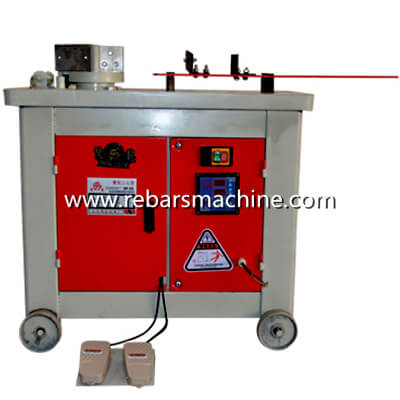

  • GF25 CNC rebar stirrup bender

As the name implies, it’s a machine used for bending reinforcement stirrups in construction buildings,

  • Video of GF25 CNC rebar stirrup bender

  • Specific of GF25 CNC rebar stirrup bender

Machine ModelGF25
Bending CapacityØ4mm-Ø25mm
Bending Frequency25-30 times per minute
Motor Power3Kw
Motor Speed1450RPM
GW/NW180Kg/150Kg
Package Dimension820*650*820mm
  • Hot using shapes

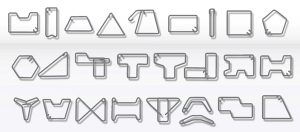

What shapes this machine can bend, let’s paste a picture as follow which show the shapes, these are some hot using shapes in construction building,bridges,levees,tunnels and so on

reinforcemcent rebar stirrups from stirrup bending machine
  • Other shapes

For sure, not only the shapes in  last picture, it can also bend other shapes in the follow picture, because it can bend angle degree range 0-180 (any one angle degree as you need)

shapes of rebar stirrup bending machine
  • How to use the manual CNC rebar stirrup bender, let’s introduce the machine composition as follows,

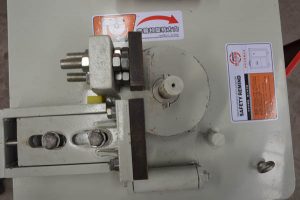

workbench of GF25 CNC rebar stirrup bender
  • Workbench

Lays rebar here for bending, GF25 CNC machine bending capacity:max 25mm, that means it can bend 25mm bar 1 piece each time

ruler gauge
  • Ruler gauge

With this ruler gauge, it’s easy to rule what length you want to bend, convenient much.

power switch of GF25 CNC rebar stirrup bender
  • Power Switch

The green button is “power on”, the red button is “power off”, this is safety and easy to operate

electric motor of GF25 CNC rebar stirrup bender
  • Electric motor

It’s Chinese famous brand motor, powerful and long lifetime, it’s 380V three phase, and we also can make other custom electric motor as your requirement

CNC controler panel of GF25 CNC rebar stirrup bender
  • CNC controler panel

If you want to bend any angle degree, operate the controler panle, input the degree number as you need

GF25 CNC rebar stirrup bender angle degree controler of

  • Angle degree control center

This is electronic tactile element, which control the bending angle degree by CNC controler panel

  • FAQ

1- What electricity for this machine?

Conventional supplying,380V, three phase,3Kw; for sure, we can also supply 220V, 400V,440V,600V and any others

2- How many pieces of rebar it can bend one time?

Diameter10mm15mm20mm25mm
Quantity6pcs2pcs1pcs1pcs

3- Is there agent in our country?

We have many customers worldwide, and we do have agents in some countries, for more details,please contact with us

4- I’m an end user, I need just 1 piece of machine

We do supply any quanties to customers, but as an export shipment, cost will be higer much for small shipment

5- What’s your payment?

T/T in company account, or Western Union for personal,

  • Machine order delivery

  • How to use this machine

If you want to know exactly how to use this machine,or if you already got such a machine, please move your step to instruction manual page

instruction manual
