Project Description

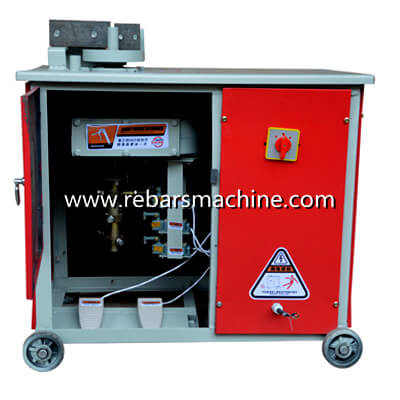

  • GF20 manual stirrup bending machine

As the name implies, it’s a machine used for bending reinforcement stirrups in construction buildings,

  • Video of the manual stirrup bending machine

  • Specific of the manual stirrup bending machine

Machine ModelGF20
Bending CapacityØ4mm-Ø20mm
Bending Frequency25-30 times per minute
Motor Power2.2Kw
Motor Speed1450RPM
Package Dimension820*590*800mm
  • Hot using shapes

What shapes this machine can bend, let’s paste a picture as follow that show the shapes, these are some hot using shapes in construction building,bridges,levees,tunnels and so on

reinforcemcent rebar stirrups from stirrup bending machine
  • Other shapes

For sure, not only the shapes in last picture, it can also bend other shapes in the follow picture, because it can bend angle degree range 0-180 (any one angle degree as you need)

shapes of rebar stirrup bending machine
  • How to use the manual stirrup bending machine, let’s introduce the machine composition as follows,

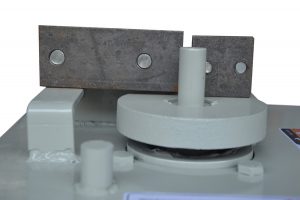

stirrup bending machine workbench

Lays rebar here for bending, this machine’s bending capacity: max 20mm, that means it can bend 20mm bar 1 piece each time

  • Workbench

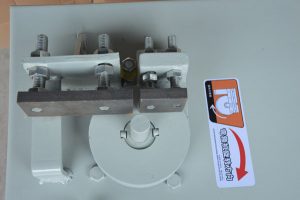

stirrup bending machine workbench operation
  • Arrow indicator

Please check above picture, it shows indicator as arrow, the rotor part will work at arrow direction, and this is the right direction to work,

stirrup bending machine angle degree integrated control center
  • Angle degree integrated control center

This center unit controls bending angle degree,0-180 degree, adjust angle degree controller setting to the point you need,

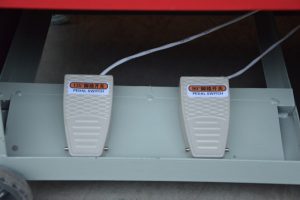

stirrup bending machine foot switch
  • Foot switch

One switch signed as 90 degree,the other one signed as 135 degree, they are matched with control center 90 degree part and 135 degree part, if you want to bend angle degree between 0-90, adjust part 90 degree and step on foot switch 90 degree, if you want to bend angle degree between 90-180, adjust part 135 degree and step on foot switch 135 degree

  • FAQ

1- What electricity for this machine?

Conventional supplying,380V, three phase,3Kw; for sure, we can also supply 220V, 400V,440V,600V and any others

2- How many pieces of rebar it can bend one time?


3- Is there agent in our country?

We have many customers worldwide, and we do have agents in some countries, for more details,please contact with us

4- I’m an end user, I need just 1 piece of machine

We do supply any quanties to customers, but as an export shipment, cost will be higer much for small shipment

5- What’s your payment?

T/T in company account, or Western Union for personal,

  • Machine order delivery

  • How to use this machine

If you want to know exactly how to use this machine,or if you already got such a machine, please move your step to instruction manual page
