Project Description

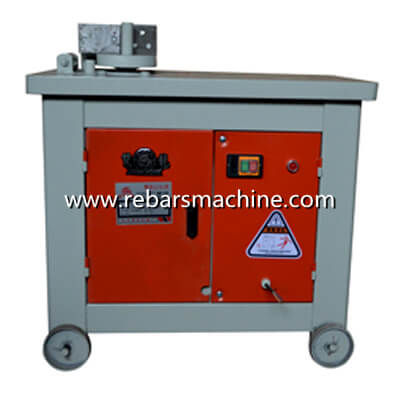

  • GF25 manual stirrup bender

As the name implies, it’s a machine used for bending reinforcement stirrups in construction buildings,

  • Video of the manual stirrup bender

  • Specific of the manual stirrup bender

Machine ModelGF25
Bending CapacityØ4mm-Ø25mm
Bending Frequency25-30 times per minute
Motor Power3Kw
Motor Speed1450RPM
Package Dimension820*650*820mm
  • Hot using shapes

What shapes the machine can bend, let’s paste a picture as follow that show the shapes, these are some hot using shapes for construction building,bridges,levees,tunnels and so on.

reinforcemcent rebar stirrups from stirrup bending machine
  • Other shapes

For sure, not only the shapes in last picture, there are also some other shapes in the following picture, because this machine can bend angle degree range 0-180 (any one angle degree as you need)

shapes of rebar stirrup bending machine

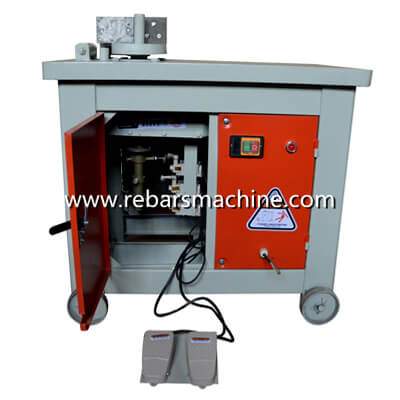

  • How to use the manual stirrup bender, let’s introduce the machine composition as follows

workbench of stirrup bender
  • Workbench

Lays rebar here for bending, this machine’s bending capacity: max 25mm, that means it can bend 25mm bar only 1 piece each time

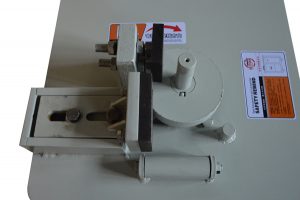

stirrup bender workbench
  • Arrow indicator

Please check the above picture, it shows indicator as arrow, the rotor part will work at arrow direction, and this is the right direction to work,

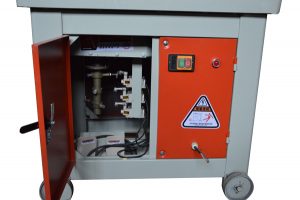

angle degree integrated control center of stirrup bender

  • Angle degree integrated control center

This center unit control the bending angle degree,0-180 degree, adjust angle degree control, set to the point as you need,

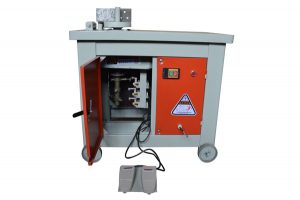

foot switch of stirrup bender
  • Foot switch

One switch signed 90 degree,the other one signed 135 degree, they are matched with the control center 90 degree part and 135 degree part, if you want to bend angle degree between 0-90, adjust the part 90 degree and step on foot switch 90 degree, if you want to bend angle degree between 90-180, adjust the part 135 degree and step on foot switch 135 degree

  • FAQ

1- What electricity for this machine?

Conventional supplying,380V, three phase,3Kw; for sure, we can also supply 220V, 400V,440V,600V and any others

2- How many pieces of rebar it can bend one time?


3- Is there agent in our country?

We have many customers worldwide, and we do have agents in some countries, for more details,please contact with us

4- I’m an end user, I need just 1 piece of machine

We do supply any quanties to customers, but as an export shipment, cost will be higer much for small shipment

5- What’s your payment?

T/T in company account, or Western Union for personal,

  • Machine order delivery

  • How to use this machine

If you want to know exactly how to use this machine,or if you already got such a machine, please move your step to instruction manual page

Instruction Manual
