Project Description

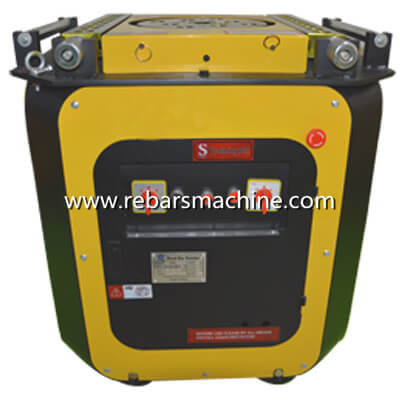

  • GW52 automatic rebar bender

As the name implies, it’s a machine used for bending steel bar in construction industry

  • Video of the automatic rebar bender

  • Specific of the automatic rebar bender

Machine ModelGW52
Round barØ4mm-Ø50mm
RebarØ4mm-Ø40mm
Motor Power4Kw
Motor Speed1450RPM
GW/NW450Kg/420Kg
Package Dimension950*850*800mm

  • How to use the automatic rebar bender, let’s introduce the machine composition as follows,

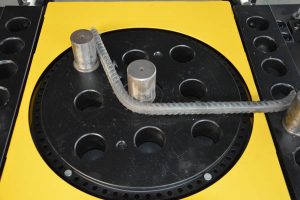

working platform table of GW50 automatic steel bar bender

  • Working platform

Working platform cover is openable, you can inject machine oil and check parts by open the platform

pillar set of rebar bender

  • Pillars set

It can help you bend different shapes with different size rebar

working platform of GW50 automatic steel bar bender

  • Working platform

A wide working platform,better for bending processing

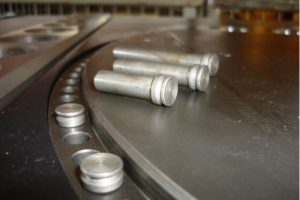

Indexing pins of GW50D

  • Indexing pins

There are 2 pcs indexing pins, which used for bending different angles

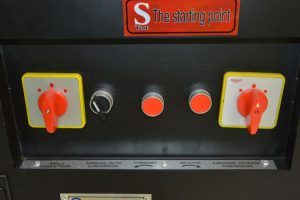

operation switch button of GW42 automatic rebar bending machine

  • Switch panel

There are few buttons in switch panel for operating, english stickers

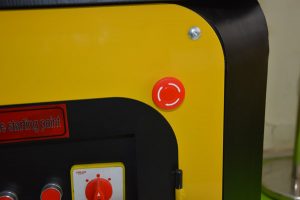

emergency stop button of GW42 automatic rebar bending machine

  • Emergency stop button

Once bending machine happens dangerous action, please press this button to stop machine at once

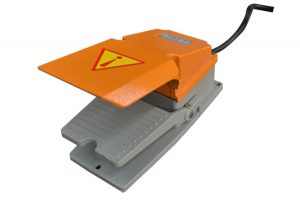

footswitch of GW40D

  • Footswitch

It can release your hands when operating the bending process,

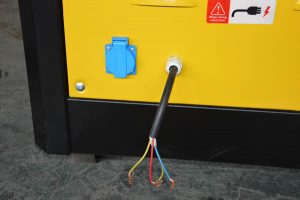

foot switch plug and power line of GW50 automatic steel bar bender

  • Footswitch plug and power line

Plug footswitch in this point and connect power line to power source

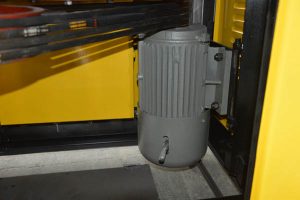

motor of GW50 automatic steel bar bender

  • Motor

Motor is powerful much, drive the gearing box supplying strong bending force,

motor of GW50 automatic steel bar bender

  • Toolkit box

Tool box contain some common using tools,

  • FAQ

1- What electricity for this machine?

Conventional supplying,380V, three phase,4Kw; for sure, we can also supply 220V, 400V,440V,600V and any others

2- What diameter rebar this machine can bend

4mm-50mm round bar, 4mm-40mm rebar

3- Is there agent in our country?

We have many customers worldwide, and we do have agents in some countries, for more details,please contact with us

4- I’m an end user, I need just 1 piece of machine

We do supply any quanties to customers, but as an export shipment, cost will be higer much for small shipment

5- What’s your payment?

T/T in company account, or Western Union for personal,

  • Machine order delivery

  • How to use this machine

If you want to know exactly how to use this machine,or if you already got such a machine, please move your step to instruction manual page

Instruction manual
