Project Description

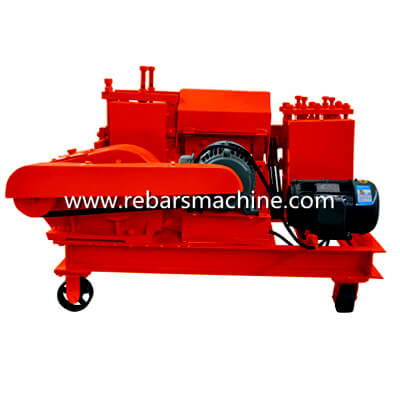

MYH6-14 bar straightening machine
As the name implies, it’s a machine used for straightening bent bar,scrap bar,twisted bar and others,straightening accuracy could be 95%+
Video of the bar straightening machine
Specific of the bar straightening machine
Machine Model | MYH6-14 |
Straight Capacity | Ø6mm-Ø14mm |
Straightening Motor | 9.5Kw(5.5Kw&4Kw) |
Straightening speed | 35m/minute |
GW/NW | 800Kg/750Kg |
Package Dimension | 150*125*90cm |
How to use the bar straightening machine, let’s introduce the machine composition as follows
Any shapes of bent bar
Not only such shapes in the above picture, it can also straight any shapes of bent bar, scrap bar, most shapes of scrap rebar

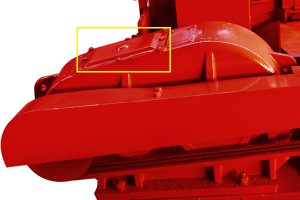

Reduction gears box and oil hole
Before using the machine, please inject 8kgs around machine oil, oil hole is marked out by the yellow line, this is a powerful reduction gears box

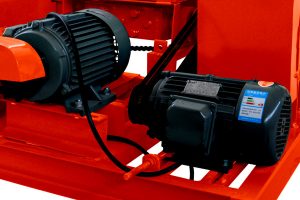

Electric motors
The machine is fixed with 2 pcs motors, one motor is 4Kw, the other is 5.5Kw, and both of them are three phase, 2 motors supplying powerful source to drive the machine
Import bar hole
Input bar here, and the security strip (which is marked by yellow line) could be moveable (left or right), to adapt different channel (channel on rollers, which adapt for different bar diameter 6mm-14mm)

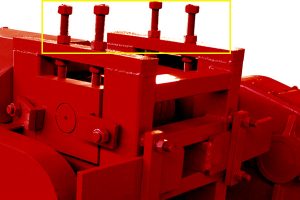

Import traction rollers and fixing bolts
Traction rollers will pull steel bar into machine itself, powerful much, fixing bolts (marked by yellow line) used for fixing rollers tightly or loosely
Straightening rollers &frame
This device is straightening rollers, when the machine is working, rollers and frame will be rolling in 3D direction, high speed.
Export bar channel
Straighten bar will come out from here, fixing bolts (marked by yellow line) used for fixing rollers tightly or loosely
FAQ
1- What electricity for this machine?
Conventional supplying,380V, three phase,9.5Kw; for sure, we can also supply 220V, 400V,440V,600V and any others
2- What diameter bars this machine can straight
size 6mm-14mm
3- Is there agent in our country?
We have many customers worldwide, and we do have agents in some countries, for more details,please contact with us
4- I’m an end user, I need just 1 piece of machine
We do supply any quanties to customers, but as an export shipment, cost will be higer much for small shipment
5- What’s your payment?
T/T in company account, or Western Union for personal,
