Project Description

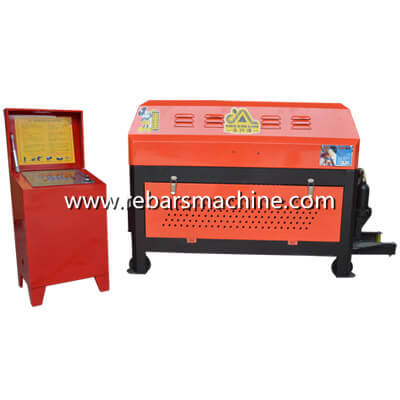

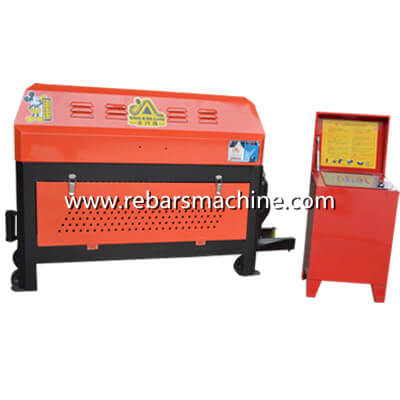

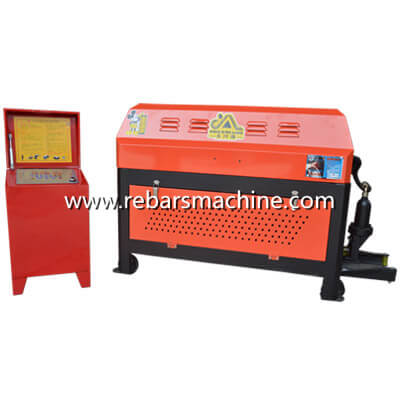

  • GT4-12 bar straightening cutting machine

As the name implies, it’s a machine used for straightening and cutting rebar in construction industry

  • Video of the straightening and cutting machine

  • Specific of the bar straightening cutting machine

Machine ModelGT4-12
Straightening Capacity(Round Bar)Ø4mm-Ø12mm
Straightening Capacity(Rebar)Ø4mm-Ø10mm
Motor Power7.5Kw
Straightening Speed38m per minute
GW/NW330Kg/250Kg
Package Dimension180*65*105cm
  • How to use the automatic straightening cutting machine, let’s introduce the machine composition as follows,

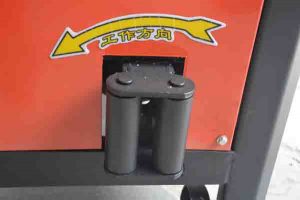

import hole of GT4-12A bar straightening and cutting machine
  • Import hole &rollers

Threading bar into import hole, rollers will keep the bar passing smoothly, no stuck

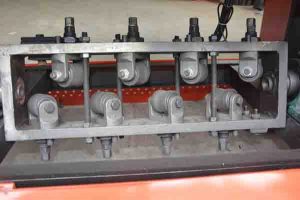

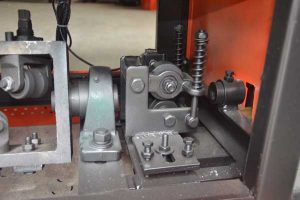

straightening unit of GT4-12A bar straightening and cutting machine
  • Straightening unit

4 groups’ rollers can guarantee a high straightening performance, you can adjust the 4 groups’ rollers to adapt 4mm-12mm bar sizes easily.

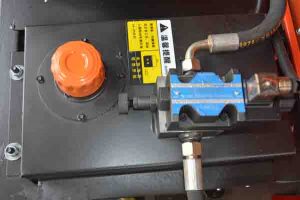

hydraulic driving system of GT4-12A bar straightening and cutting machine
  • Hydraulic driving system

It needs 20-25 kg hydraulic oil to drive cutting unit running

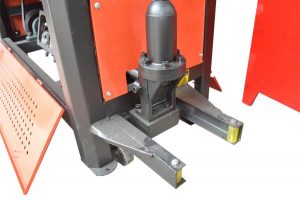

cutting system of GT4-12A bar straightening cutting machine
  • Cutting system

This is a dynamic cutting system which driven by hydraulic system

Measurement device of length cutting GT4-12A bar straightening and cutting machine
  • Measurement device of length cutting

This device measure bar length, which is controlled by length instruct in CNC panel

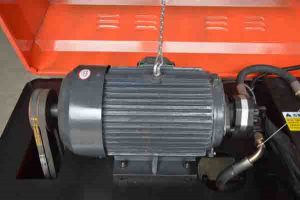

electric motor of GT4-12A bar straightening and cutting machine
  • Electric motor

This is a powerful electric motor, 7.5Kw, it powers bar pulling, bar straightening, and bar cutting.

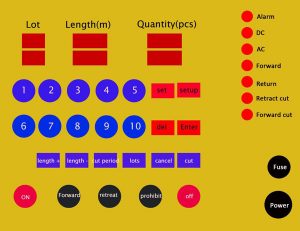

CNC panel of straightening and cutting machine
  • CNC controller panel

You can input work instruct by this CNC panel easily

  • FAQ

1- What electricity for this machine?

Conventional supplying,380V, three phase,7.5Kw; for sure, we can also supply 220V, 400V,440V,600V and any others

2- What diameter rebar this machine can straight

4mm-12mm sizes round bar, 4mm-10mm sizes rebar

3- Is there agent in our country?

We have many customers worldwide, and we do have agents in some countries, for more details,please contact with us

4- I’m an end user, I need just 1 piece of machine

We do supply any quanties to customers, but as an export shipment, cost will be higer much for small shipment

5- What’s your payment?

T/T in company account, or Western Union for personal,

  • Machine order delivery

  • How to use this machine

If you want to know exactly how to use this machine,or if you already got such a machine, please move your step to instruction manual page

Instruction manual
