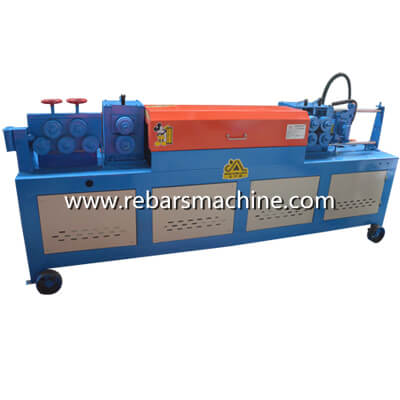

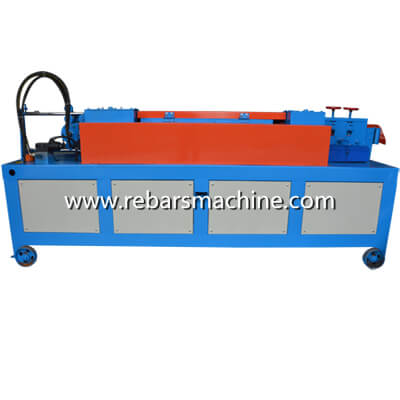

  • GT4-14D automatic rebar straightening cutting machine

As the name implies, it’s a machine used for straightening and cutting rebar in construction industry

  • Video of the straightening and cutting machine

  • Specific of the machine

Machine ModelGT4-14D
Straightening Capacity(Round Bar)Ø4mm-Ø14mm
Straightening Capacity(Rebar)Ø4mm-Ø12mm
Motor Power17Kw
Straightening Speed52m per minute
GW/NW1250Kg/1050Kg
Package Dimension285*75*130cm

  • How to use the automatic straightening cutting machine, let’s introduce the machine composition as follows,

import hole & traction rollers of GT4-14D automatic rebar straightening and cutting machine

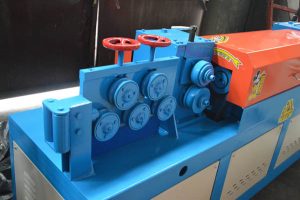

  • Import hole &rollers

Threading bar into import hole, rollers will keep the bar passing smoothly, no stuck, 5 traction rollers supply powerful traction force

straightening die of GT4-14D automatic rebar straightening and cutting machine

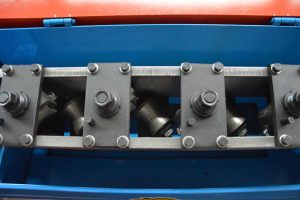

  • Straightening die unit

4 groups’ rollers can guarantee a high straightening performance, you can adjust the 4 groups’ rollers to adapt 4mm-14mm rebar sizes easily.

hydraulic oil hole of GT4-14D automatic rebar straightening and cutting machine

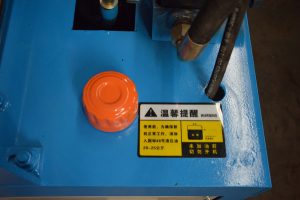

  • Hydraulic driving system

It needs 20-25 kg hydraulic oil to drive cutting unit running

hydraulic cutting unit of GT4-14D automatic rebar straightening and cutting machine

  • Cutting system

This is a dynamic cutting system which driven by hydraulic system

traction rollers& measurement device of GT4-14D automatic rebar straightening and cutting machine

  • Measurement device & traction rollers

This device measure bar length, which is controlled by length instruct in CNC panel

hydraulic cutting device of GT4-14D automatic rebar straightening and cutting machine

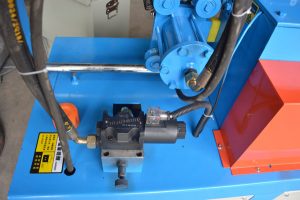

  • Hydraulic cutting device

This is a hydraulic cutting device, powerful much, and swift

cnc controller of GT4-14D automatic rebar straightening and cutting machine

  • CNC controller box

This is a switch and CNC panle, you can control the machine by this box easily

CNC panel of straightening and cutting machine

  • CNC controller panel

You can input work instruct by this CNC panel easily
