Project Description

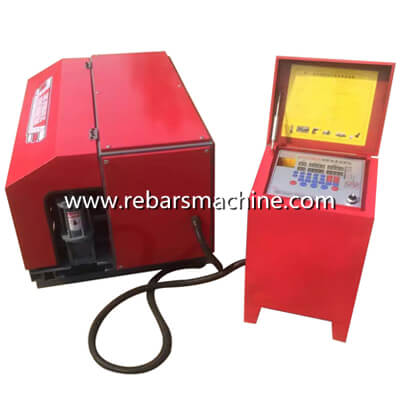

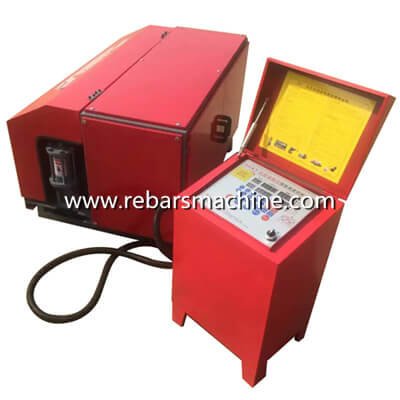

  • GT2-5 wire straightening and cutting machine

As the name implies, it’s a machine used for straightening and cutting wire in construction industry

  • Video of the straightening and cutting machine

  • Specific of the bar straightening cutting machine

Machine ModelGT2-5
Straightening Capacity(Round Bar)Ø2mm-Ø5mm
Straightening&Cutting Power5Kw
Pulling Motor Power0.75Kw
Straightening Speed40m per minute
GW/NW400Kg/300Kg
Package Dimension190*70*90cm
  • How to use the wire straightening cutting machine, let’s introduce the machine composition as follows,

straightening unit of GT2-5 wire straightening and cutting machine

  • Straightening die

3 groups straightening die can guarantee a high straightening performance, you can adjust the 3 groups’ dies to adapt 2mm-5mm wire sizes easily.

import unit of GT2-5 wire straightening and cutting machine

  • Import unit

Wide mouth import hole keep the wire passing through smoothly, no stuck

export unit of GT2-5 wire straightening and cutting machine

  • Measurement device of length cutting

This device measure bar length, which is controlled by length instruct in CNC panel

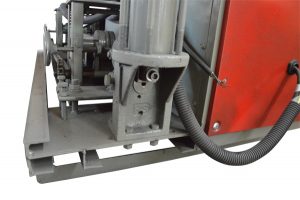

hydraulic cutting device of GT2-5 wire straightening and cutting machine

  • Cutting device

This device is driven by hydraulic power

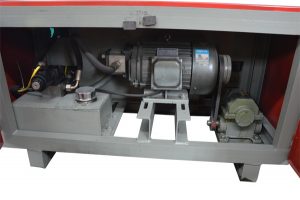

  • Electric motor and hydraulic driving unit

This is a 5Kw motor, supply power for straightening, pulling, and hydraulic cutting

CNC panel of straightening and cutting machine
  • CNC controller panel

You can input work instruct by this CNC panel easily

  • FAQ

1- What electricity for this machine?

Conventional supplying,380V, three phase,5Kw; for sure, we can also supply 220V, 400V,440V,600V and any others

2- What diameter wire this machine can straight

2mm-5mm wire sizes

3- Is there agent in our country?

We have many customers worldwide, and we do have agents in some countries, for more details,please contact with us

4- I’m an end user, I need just 1 piece of machine

We do supply any quanties to customers, but as an export shipment, cost will be higer much for small shipment

5- What’s your payment?

T/T in company account, or Western Union for personal,

  • Machine order delivery

  • How to use this machine

If you want to know exactly how to use this machine,or if you already got such a machine, please move your step to instruction manual page

Instruction manual
