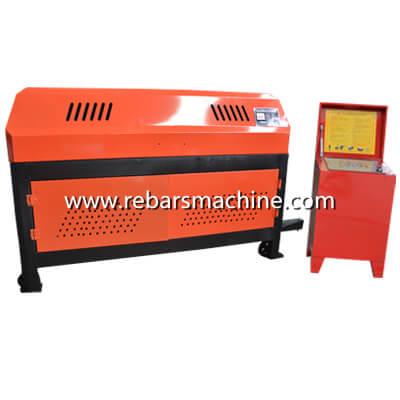

  • GT4-14A steel bar straightening cutting machine

As the name implies, it’s a machine used for straightening and cutting rebar in construction industry

  • Video of the straightening and cutting machine

  • Specific of the steel bar straightening cutting machine

Machine ModelGT4-14A
Straightening Capacity(Round Bar)Ø4mm-Ø14mm
Straightening Capacity(Rebar)Ø4mm-Ø12mm
Motor Power9Kw
Straightening Speed40m per minute
GW/NW400Kg/300Kg
Package Dimension190*70*109cm
  • How to use the automatic straightening cutting machine, let’s introduce the machine composition as follows,

import hole of GT5-14A steel bar straightening and cutting machine
  • Import hole &rollers

Threading bar into import hole, rollers will keep the bar passing smoothly, no stuck

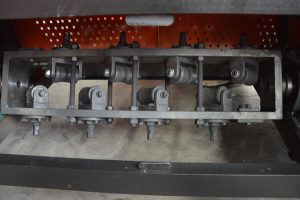

straightening unit of GT5-14A steel bar straightening and cutting machine
  • Straightening unit

4 groups’ rollers can guarantee a high straightening performance, you can adjust the 4 groups’ rollers to adapt 5mm-14mm bar sizes easily.

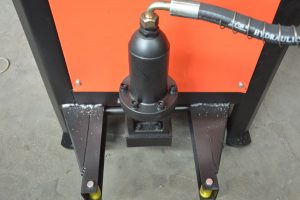

hydraulic driving system of GT5-14A steel bar straightening and cutting machine
  • Hydraulic driving system

It needs 20-25 kg hydraulic oil to drive cutting unit running

cutting unit of GT5-14A steel bar straightening and cutting machine
  • Cutting system

This is a dynamic cutting system which driven by hydraulic system

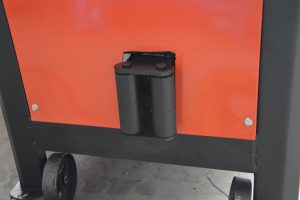

Measurement device of length cutting GT4-12A bar straightening and cutting machine
  • Measurement device of length cutting

This device measure bar length, which is controlled by length instruct in CNC panel

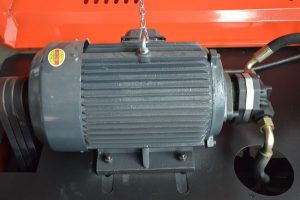

electric motor of GT5-14A steel bar straightening cutting machine
  • Electric motor

This is a powerful electric motor, 7.5Kw, it powers bar pulling, bar straightening, and bar cutting.

CNC panel of straightening and cutting machine
  • CNC controller panel

You can input work instruct by this CNC panel easily

  • FAQ

1- What electricity for this machine?

Conventional supplying,380V, three phase,9Kw; for sure, we can also supply 220V, 400V,440V,600V and any others

2- What diameter rebar this machine can straight

4mm-14mm sizes round bar, 4mm-12mm sizes rebar

3- Is there agent in our country?

We have many customers worldwide, and we do have agents in some countries, for more details,please contact with us

4- I’m an end user, I need just 1 piece of machine

We do supply any quanties to customers, but as an export shipment, cost will be higer much for small shipment

5- What’s your payment?

T/T in company account, or Western Union for personal,
