Project Description

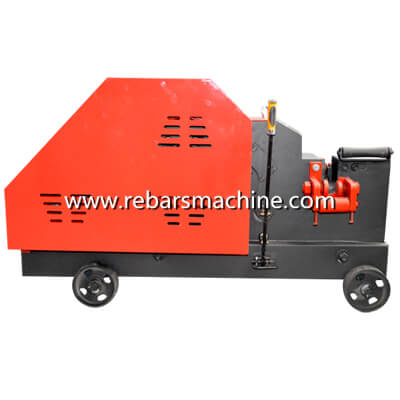

GQ40A steel rebar cutter
As the name implies, it’s a machine used for cutting rebar in construction industry
Video of the steel rebar cutter
Specific of the steel rebar cutter
Machine Model | GQ40A |
Round bar | Ø4mm-Ø40mm |
Rebar | Ø4mm-Ø32mm |
Motor Power | 3Kw |
Motor Speed | 1450RPM |
GW/NW | 450Kg/420Kg |
Package Dimension | 1525*500*840mm |
How to use the steel rebar cutter, let’s introduce the machine composition as follows,

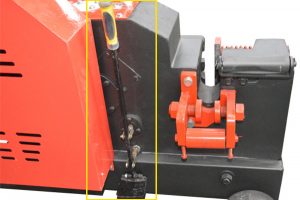

Cutting controller
It’s a clutch, with this controller you can control cutting rebar process as you want

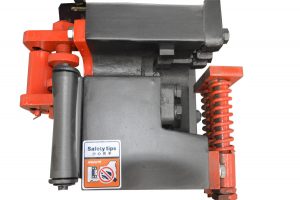

Working channel
Rebar goes through this channel, and cutting process happens in this channel

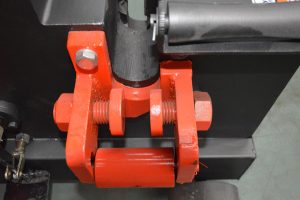

Support brackets
This device is used for supporting rebar cutting safety

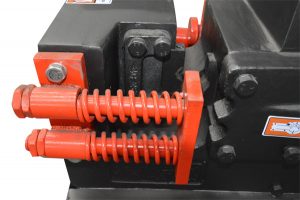

Flexible shield
This device is used for supporting rebar cutting safety

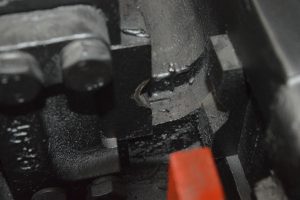

Cutting blade
Arc-shaped alloy blade bit, cut iron drunk
Lifting ring
With the lifting ring, you can load it to anywhere
Machine oil hole
Before using the machine, inject machine oil through this hole
Power line
Three phase power source
Power switch
“Red” is power off, “Green” is power on
Electric motor
It’s a 3Kw electric motor, three phase
FAQ
1- What electricity for this machine?
Conventional supplying,380V, three phase,3Kw; for sure, we can also supply 220V, 400V,440V,600V and any others
2- What diameter rebar this machine can cut
4mm-40mm round bar, 4mm-32mm rebar
3- Is there agent in our country?
We have many customers worldwide, and we do have agents in some countries, for more details,please contact with us
4- I’m an end user, I need just 1 piece of machine
We do supply any quanties to customers, but as an export shipment, cost will be higer much for small shipment
5- What’s your payment?
T/T in company account, or Western Union for personal,
