Project Description

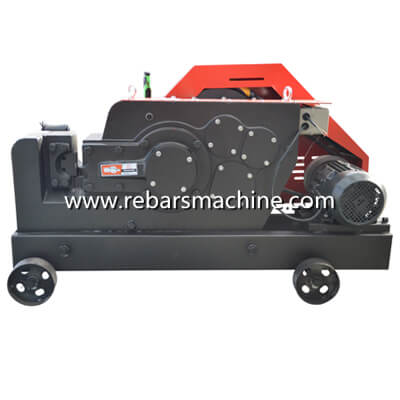

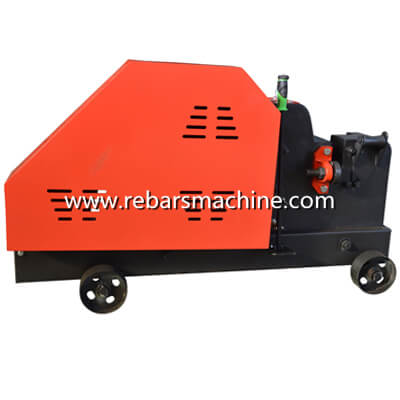

GQ40C electric rebar cutter
As the name implies, it’s a machine used for cutting rebar in construction industry
Video of the electric rebar cutter
Specific of the steel bar cutting machine
Machine Model | GQ40C |
Round bar | Ø4mm-Ø40mm |
Rebar | Ø4mm-Ø32mm |
Motor Power | 3Kw |
Motor Speed | 1450RPM |
GW/NW | 450Kg/420Kg |
Package Dimension | 1525*500*840mm |
How to use the electric rebar cutter, let’s introduce the machine composition as follows,
Support brackets
This device is used for supporting rebar cutting safety
Cutting blade
Alloy blade bit, straight line segment,cut iron drunk
Lifting ring
With the lifting ring, you can load it to anywhere
Machine oil hole
Before using the machine, inject machine oil through this hole
Power line
Three phase power source
Power switch
“Red” is power off, “Green” is power on
Electric motor
It’s a 3Kw electric motor, three phase
FAQ
1- What electricity for this machine?
Conventional supplying,380V, three phase,3Kw; for sure, we can also supply 220V, 400V,440V,600V and any others
2- What diameter rebar this machine can cut
4mm-40mm round bar, 4mm-32mm rebar
3- Is there agent in our country?
We have many customers worldwide, and we do have agents in some countries, for more details,please contact with us
4- I’m an end user, I need just 1 piece of machine
We do supply any quanties to customers, but as an export shipment, cost will be higer much for small shipment
5- What’s your payment?
T/T in company account, or Western Union for personal,
