Project Description

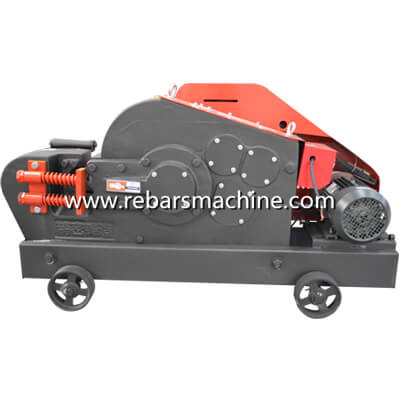

  • GQ45A steel bar cutter

As the name implies, it’s a machine used for cutting steel bar in construction industry

  • Video of the steel rebar cutter

  • Specific of the steel bar cutter

Machine ModelGQ45A
Round barØ4mm-Ø45mm
RebarØ4mm-Ø36mm
Motor Power4Kw
Motor Speed1450RPM
GW/NW490Kg/450Kg
Package Dimension1625*520*840mm
  • How to use the steel bar cutter, let’s introduce the machine composition as follows,

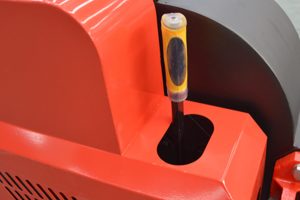

cutting clutch hand controller
  • Cutting clutch hand controller

It’s a clutch, with this controller you can control cutting steel process by hand

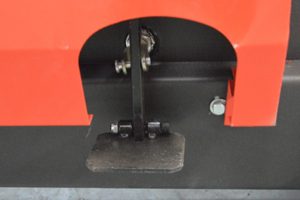

cutting clutch foot controller
  • Cutting clutch foot controller

It’s a clutch, with this controller you can control cutting steel process by foot

working channel of GQ40H steel rebar cutter
  • Working channel

Rebar goes through this channel, and cutting process happens in this channel

Support brackets of GQH40 steel rebar cutter
  • Support brackets

This device is used for supporting rebar cutting safety

Flexible shield of GQH40 steel rebar cutter
  • Flexible shield

This device is used for supporting rebar cutting safety

Cutting blade of GQ40H steel rebar cutter
  • Cutting blade

Arc-shaped alloy, cut iron drunk

lifting ring of electric bar cutter
  • Lifting ring

With the lifting ring, you can load it to anywhere

Machine oil hole of GQ40H steel rebar cutter
  • Machine oil hole

Before using the machine, inject machine oil through this hole

Power line of GQ40H steel rebar cutter
  • Power line

Three phase power source

Power switch of GQ40H steel rebar cutter
  • Power switch

“Red” is power off, “Green” is power on

electric motor of GQ40H steel rebar cutter
  • Electric motor

It’s a 4Kw electric motor, three phase

  • FAQ

1- What electricity for this machine?

Conventional supplying,380V, three phase,4Kw; for sure, we can also supply 220V, 400V,440V,600V and any others

2- What diameter rebar this machine can cut

4mm-45mm round bar, 4mm-35mm rebar

3- Is there agent in our country?

We have many customers worldwide, and we do have agents in some countries, for more details,please contact with us

4- I’m an end user, I need just 1 piece of machine

We do supply any quanties to customers, but as an export shipment, cost will be higer much for small shipment

5- What’s your payment?

T/T in company account, or Western Union for personal,

  • Machine order delivery

  • How to use this machine

If you want to know exactly how to use this machine,or if you already got such a machine, please move your step to instruction manual page

Instruction manual
