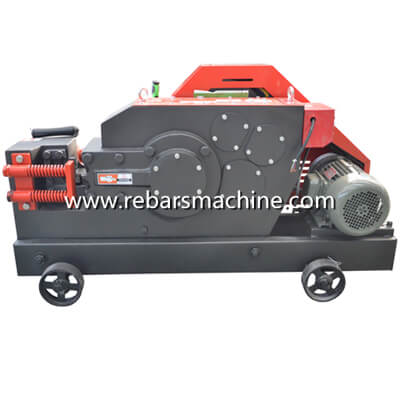

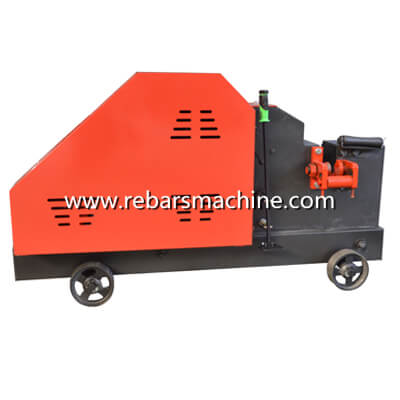

As the name implies, it’s a machine used for cutting rebar in construction industry

Machine Model	GQ50A
Round bar	Ø4mm-Ø50mm
Rebar	Ø4mm-Ø40mm
Motor Power	4Kw
Motor Speed	1450RPM
GW/NW	590Kg/520Kg
Package Dimension	1925*500*840mm

It’s a clutch, with this controller you can control cutting rebar process as you want

Rebar goes through this channel, and cutting process happens in this channel

This device is used for supporting rebar cutting safety

This device is used for supporting rebar cutting safety

Arc-shaped alloy blade bit, cut iron drunk

With the lifting ring, you can load it to anywhere

Before using the machine, inject machine oil through this hole

Three phase power source

“Red” is power off, “Green” is power on

It’s a 4Kw electric motor, three phase

1- What electricity for this machine?

Conventional supplying,380V, three phase,4Kw; for sure, we can also supply 220V, 400V,440V,600V and any others

2- What diameter rebar this machine can cut

4mm-50mm round bar, 4mm-40mm rebar

3- Is there agent in our country?

We have many customers worldwide, and we do have agents in some countries, for more details,please contact with us

4- I’m an end user, I need just 1 piece of machine

We do supply any quanties to customers, but as an export shipment, cost will be higer much for small shipment

5- What’s your payment?

T/T in company account, or Western Union for personal,

If you want to know exactly how to use this machine,or if you already got such a machine, please move your step to instruction manual page
