Project Description
How to use a wire straightening cutting machine GT2-5 (GT2-5 wire straightening cutting machine manual)
- Before using the GT2-5, please read this operating manual carefully
Tech details specification of the straightening machine
Machine Model GT2-5 Straightening Capacity(Round Bar) Ø2mm-Ø5mm Straightening&Cutting Power 5Kw Pulling Motor Power 0.75Kw Straightening Speed 40m per minute GW/NW 400Kg/300Kg Package Dimension 190*70*90cm

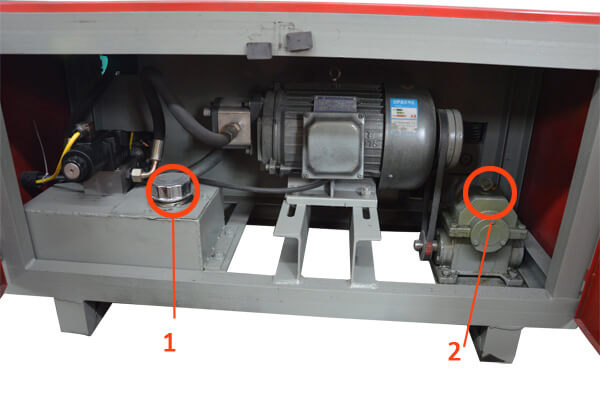

Fill machine oil and hydraulic oil
- Point 1: Hydraulic oil; Point 2: Machine gears oil
Threading Wire
Power line connection
- 1: 380V three phase power input
- 2: Black three lines from the machine
- 3: Yellow two lines from the machine
- 4: Land line
CNC controller connecter
We recently purchased this machine we can’t control face a difficulty with panale we set a lenth quantity but but machine was cut 1 pice and count down in batch n other problem is The lenth was not in mm mili Metter I’m waiting your replay
The length unit can’t convert to mm
my machine GT2-5B wire straight …………my problem lenght digit is meter mesurment
how input lenght in mm
The length unit can’t convert to mm
Hello Shuanglong Machinery, we recently purchased this machine but we are having difficulty in having a consistent and accurate cut length. We observed that it has wide range of +-1cm versus the set length. Please provide feedback on how to address this problem. Thanks for your reply.
thanks, let’s keep in touch by email
